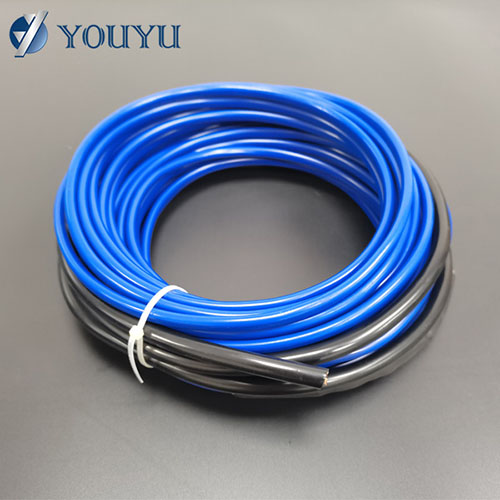

110V/220V 13W/M Twin Conductor Heating Cable

Item No.: FTC-13-2
Application: Underfloor Heating
Insulation Material: FEP
Conductor Material: Nickel-Copper Alloy Heating Wire
Jacket: PVC
Description
Description
There are two heating cores inside the single conductor heating cable. When wiring, only one end of the heating cable need to be connected to the power supply. After the heating cable is connected to the power supply, the heating wire is heated and runs between 40°C and 65°C.

Working Principle
The inner core of the heating cable is composed of cold wire and hot wire. The outer core is composed of an insulating layer, a grounding layer, a shielding layer and an outer jacket. After the heating cable is energized, the hot wire heats up and runs between 40 and 60 degrees Celsius. The heating cable embedded in the filling layer transmits the heat energy through the way of heat conduction (convection) and emits the far infrared radiation of 8-13um.

Product Advantage
1. Comfortable, healthy, clean, long life and no maintenance.
2. Spacious, simple, warm, damp proof and mildew proof.
3. Safety, efficiency, environmental protection, energy saving and low cost.
4. There is no leakage and short circuit in heating by heating cable, and there is no danger;


Catalog Number
Rated Voltage

Power/Meter
(W/M)
Length  (M)
 Output Power
(W)
Resistance
(Ohms)
FTC-150-13-2-110 110 13 11.5 150 80.7
FTC-225-13-2-110 110 13 17.3 225 53.8
FTC-300-13-2-110 110 13 23.1 300 40.3
FTC-375-13-2-110 110 13 28.8 375 32.3
FTC-450-13-2-110 110 13 34.6 450 26.9
FTC-525-13-2-110 110 13 40.4 525 23
FTC-600-13-2-110 110 13 46.2 600 20.2
FTC-675-13-2-110 110 13 51.9 675 17.9
FTC-750-13-2-110 110 13 57.7 750 16.1
FTC-900-13-2-110 110 13 69.2 900 13.4

Catalog Number Rated Voltage Power/Meter
(W/M)
Length(M) Output Power
(W)
Resistance
(Ohms)
FTC-150-13-2-220 220 13 11.5 150 322.7
FTC-225-13-2-220 220 13 17.3 225 215.1
FTC-300-13-2-220 220 13 23.1 300 161.3
FTC-375-13-2-220 220 13 28.8 375 129.1
FTC-450-13-2-220 220 13 34.6 450 107.6
FTC-525-13-2-220 220 13 40.4 525 92.2
FTC-600-13-2-220 220 13 46.2 600 80.7
FTC-675-13-2-220 220 13 51.9 675 71.7
FTC-750-13-2-220 220 13 57.7 750 64.5
FTC-900-13-2-220 220 13 69.2 900 53.8
FTC-1050-13-2-220 220 13 80.8 1050 46.1
FTC-1200-13-2-220 220 13 92.3 1200 40.3
FTC-1350-13-2-220 220 13 103.8 1350 35.9
FTC-1500-13-2-220 220 13 115.4 1500 32.3
FTC-1650-13-2-220 220 13 126.9 1650 29.3
FTC-1800-13-2-220 220 13 138.5 1800 26.9
